MOTOX-G는 Geared motor의 토르크 범위를
80,000 Nm까지 증가 시켰습니다. 이것은 Geared motor 시장에서의 혁신적인 일이며
산업용 기어 유니트의 기술과 기어드모터의 경제성이 결합된 것입니다.
MOTOX-G는 기존의 기어드 모터에 적용될 수 있는 모든 연결 요소들이 입력축 및 출력축에 적용
될 수 있습니다. 또한 구동 시스템의 다양한 모니터링 기기들과 함께 설치도리 수 있습니다.
더욱이 MOTOX MASTER 의 Motor integrated frequency inverter
또는 MOTOX DRIVE Frequency inverter와 결합되면 정적인 드라이브를 가변속
드라이브로 변화시킬 수 있는 간편한 방법을 제시해 줄 수 있습니다.
Economical & Environmentally
friendly
Low
price at high performance level
Simple
installation, no oil fittings
No
oil change necessary
Lower
energy consumption throug high efficiencies
Smooth
and silent running
Completely sealed & ligh
High
- grade shaft seals
No
housing ventilation necessary
Few,
optimised sealing surfaces
Housing and attachment parts made from
----die-cast aluminium
with a good thermal conductivity
Powerful & long - lasting
Proved,
reliable CAVEX gearing sets
Adequately
dimensioned high quality bearings
Compact
and sturdy construction

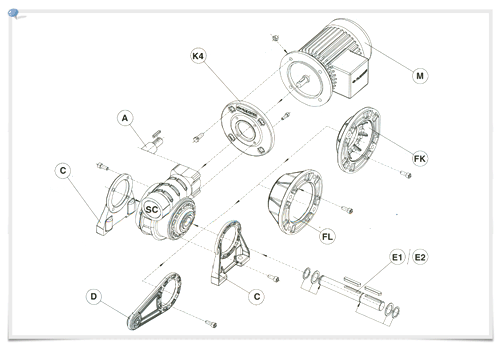

SC = Basic Gear Unit with housing flanges
(C-types), lifetime lubricated with high performance
synthetic gear oil, suitable for all mounting positions
Variations of Input side
M = Motor (IM B14* oder IM B5)
----(Terminal box mountable
in 4 positions)*
K4 = Adapter flange* for IEC-Standard
Motors ----(IM
B14 oder IM B5)
A = Input shaft extension*
----(only to be assembled
at the factory)
Variations of Output side
C = 2 Feet* ----(mountable
in 3 positions: "6h / 9h / 12h")*
FK = Short flange (A-type)*
-----(mountable on
both sides)*
FL = Long flange (A-type)*
-----(mountable on
both sides)*
E1 = Push in-shaft with single
shaft extension** -----(mountable
on both sides)**
E2 = Push in-shaft with double
shaft extension**
D = Torque arm** ----(mountable
on both sides in 5 positions)**
* These assembly groups are assembled unassembled
for flexible assembly during installation.
** These assembly groups are supplied unassembled
for flexible assembly during installation.
All assembly groups and parts are available
from stock and deliverable therefore at short notice.
